Features
- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Heavy-duty cast iron and steel construction for added strength and durability
- Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
- Large, cast iron, precision ground table for precise workpiece support
- Powerful 5 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
- Positive gear drive moves table quickly and accurately
- Cast iron infeed and outfeed tables come with the machine

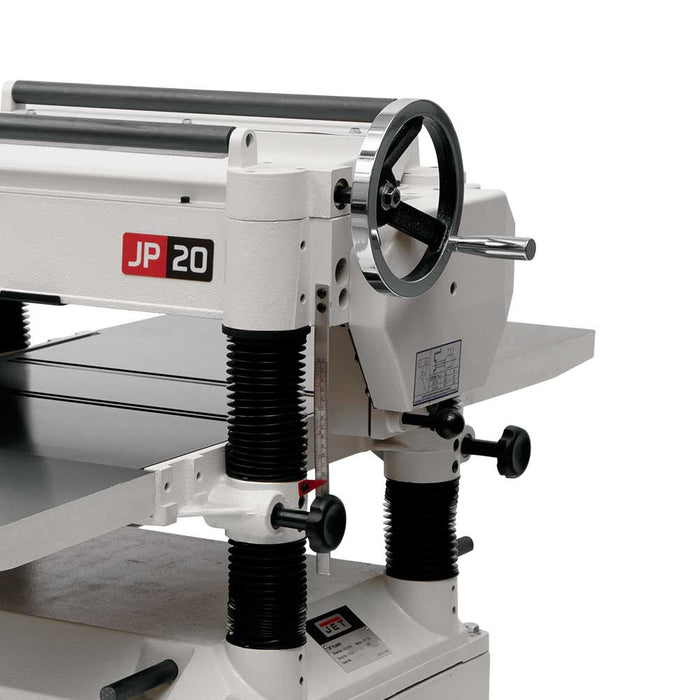

- Large handwheel with positive gear drive allows for quick and accurately table adjustments
- 1/16 increment height scale lets you make the most precise adjustments for fine cuts
- 5 dust port provides efficient chip and dust collection

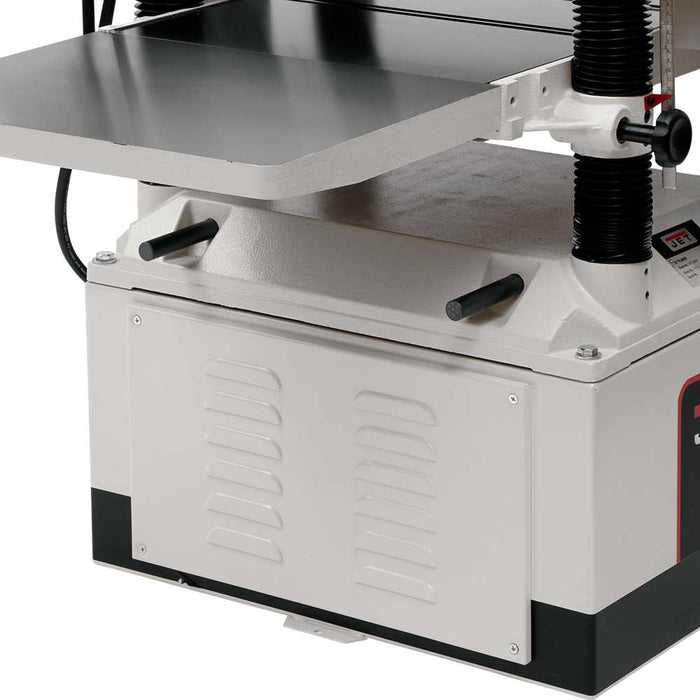

- One-piece welded steel base offers solid support and stability

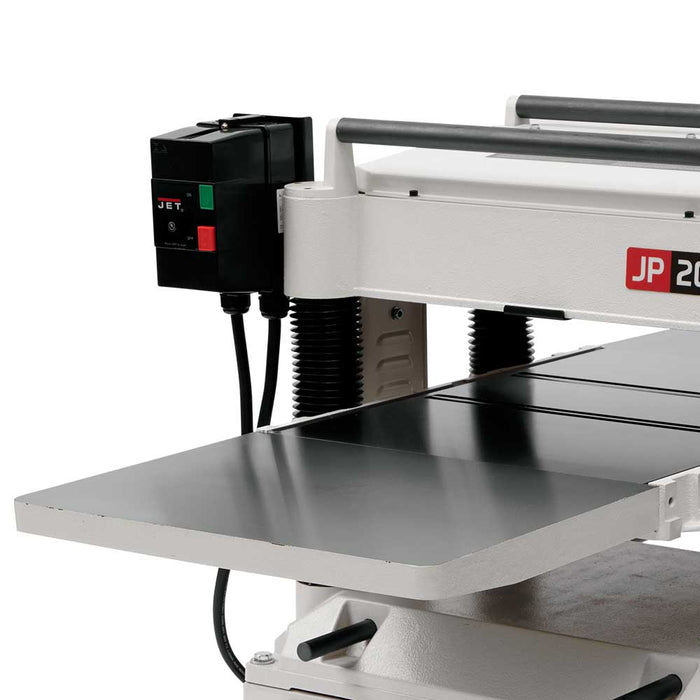

- Magnetic controls provide long life and reliability
What's in The Box

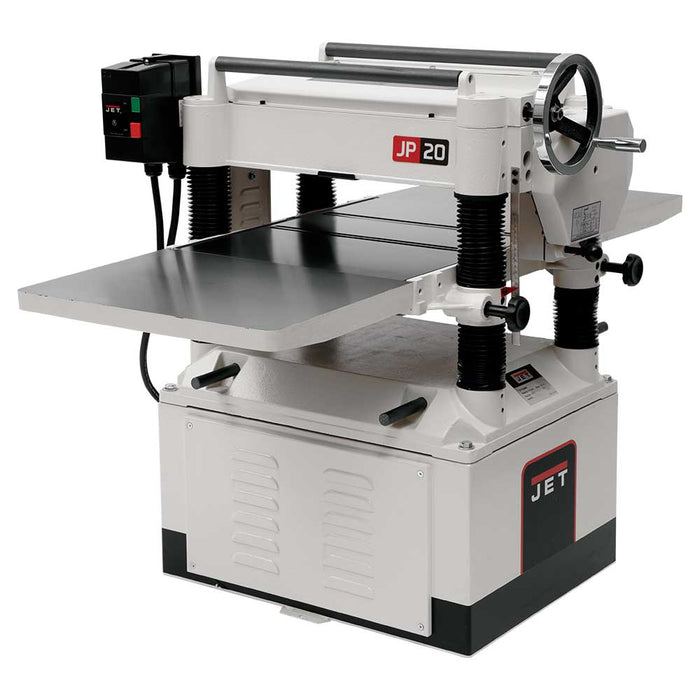

- JWP-208HH, 20 Planer 5HP 1Ph, Helical Head 708544
Warranty
- JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
- 30 Day Satisfaction Guaranteed
Specifications
| Style (Type) | Planer |
| Cutterhead Speed (RPM) | 5000 |
| Cutterhead Diameter (In.) | 3-3/16 |
| Number of Knives | 92 Four-Sided Inserts |
| Maximum Full Width Depth of Cut (In.) | 3/32 |
| Maximum Planing Width (In.) | 20 |
| Maximum Planing Thickness (In.) | 8 |
| Minimum Planing Length (In.) | 6-3/4 |
| Feed Rate (FPM) | 24/31 |
| Number of Speeds | 2 |
| Table Size (L x W) (In.) | 25-3/4 x 20 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Dust Port Outside Diameter (In.) | 5 |
| Motor Power (HP) | 5 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 27 |
